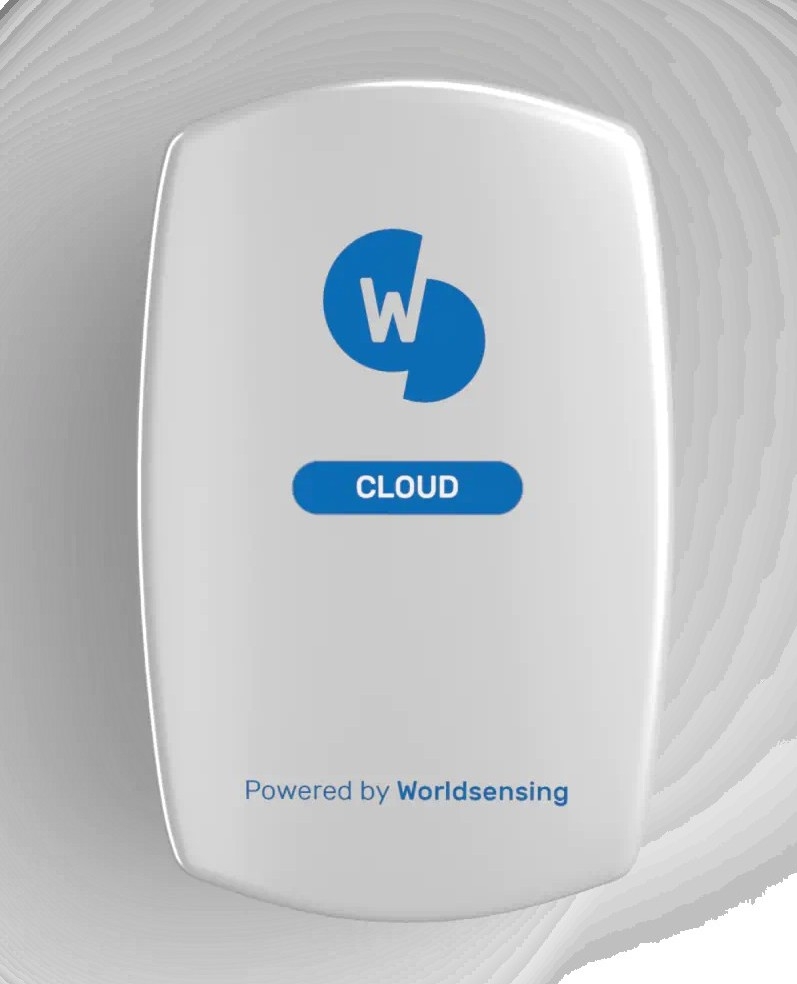

LS-M6-KIO-GW is a rugged 4G connectivity solution
The LS-M6-KIO-GW is a rugged 4G connectivity solution that serves as a central communication hub for narrowband networks. It provides long-range, low-power wireless communication between various sensors and a central system, making it ideal for remote or large-scale deployments.
Key Features
Connectivity
- Supports LoRa/LoRaWAN radio communication with coverage of up to 15 km.
- Offers both 4G connectivity (with 3G/2G fallback functionality) and an Ethernet (RJ45) connection.
Scalability
- Capable of handling up to 30 messages per minute in a single gateway deployment (Edge Gateway).
- In multi-gateway systems (Cloud Gateway), processing capacity reaches up to 300 messages per minute.
Design
- IP68 protection rating ensures durability in harsh outdoor environments.
- Operates efficiently in a temperature range of -40°C to +60°C.
Sensor Compatibility
The LS-M6-KIO-GW gateway is compatible with a wide range of Worldsensing edge devices, including:
- Vibrating Wire Data Loggers: Automates data collection from devices such as piezometers, load cells, and strain gauges.
- Digital Data Loggers: Connects to various digital sensors, streaming data wirelessly.
- Analog Data Loggers: Supports inputs from analog sensors, such as voltage, current, and resistance transducers.
- Wireless Tilt and Vibration Meters: Monitors structural health by detecting tilts and vibrations.
