Augmented reality instrument Trimble SiteVision
Trimble SiteVision is an augmented reality tool for visualizing geospatial data. Its purpose is to display 3D geospatial data before construction or engineering works, monitor and manage changes during progress, and facilitate visualization of underground utilities before excavation.
Overview:
Upload your BIM and construction projects, topographic plans, or other designs to Trimble Connect cloud and visualize them with Trimble SiteVision. SiteVision allows you to see what is otherwise invisible, such as underground utilities, or to visualize future developments. Identify potential issues in advance.
Features:

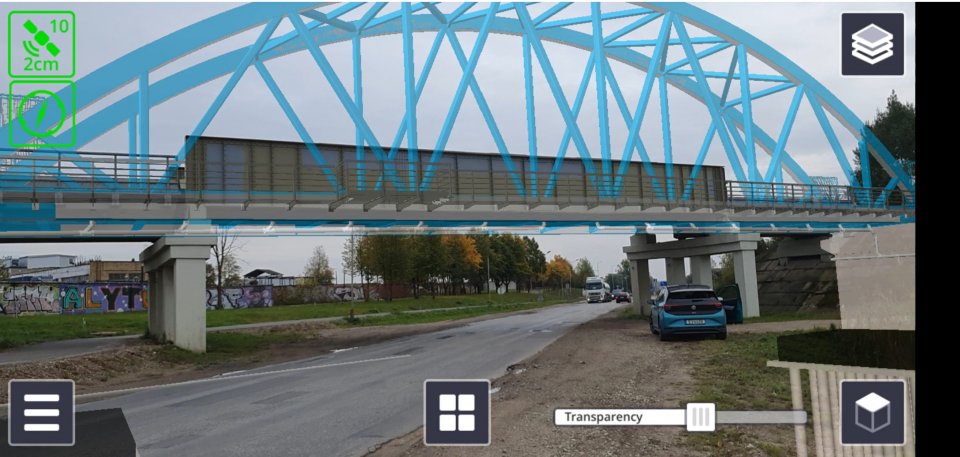

Visualize 3D Models in Space:

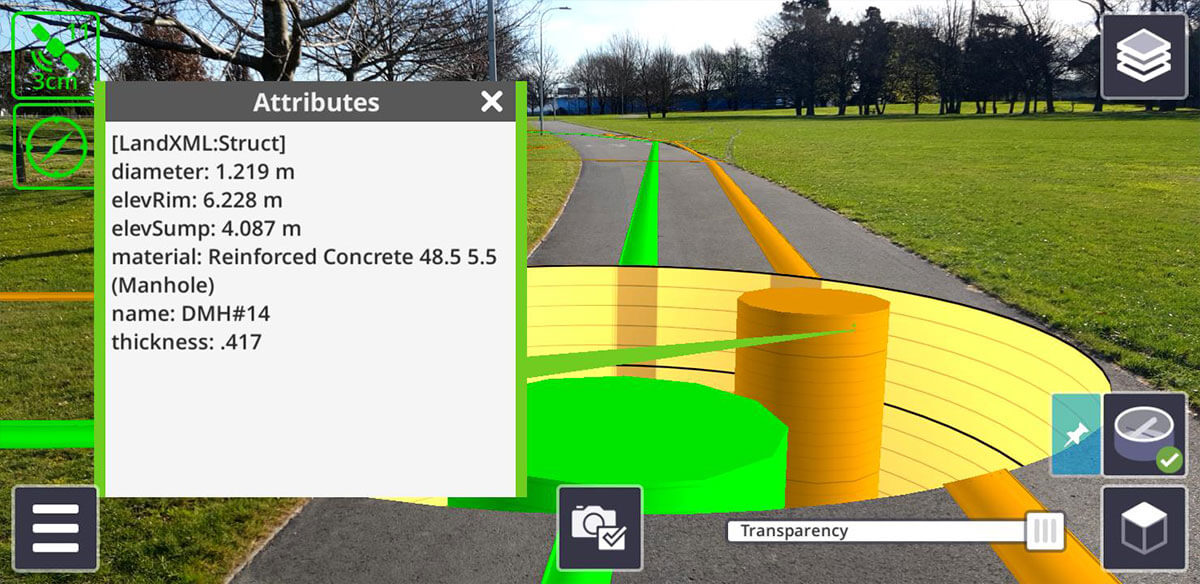

- Place your digital 3D data and view it from different angles at a real-world scale, whether above ground or underground. Examples include pipelines, cables, and other infrastructure.
Measure:
- Easily measure position coordinates using the integrated GNSS receiver and electronic rangefinder in augmented reality.
Collaborate:
- Augmented reality visuals enable clear understanding of planned constructions. Share information seamlessly with colleagues.
Create Reports:
- Take photos, save measurements, and make notes on-site. Assign tasks to colleagues or partners directly.

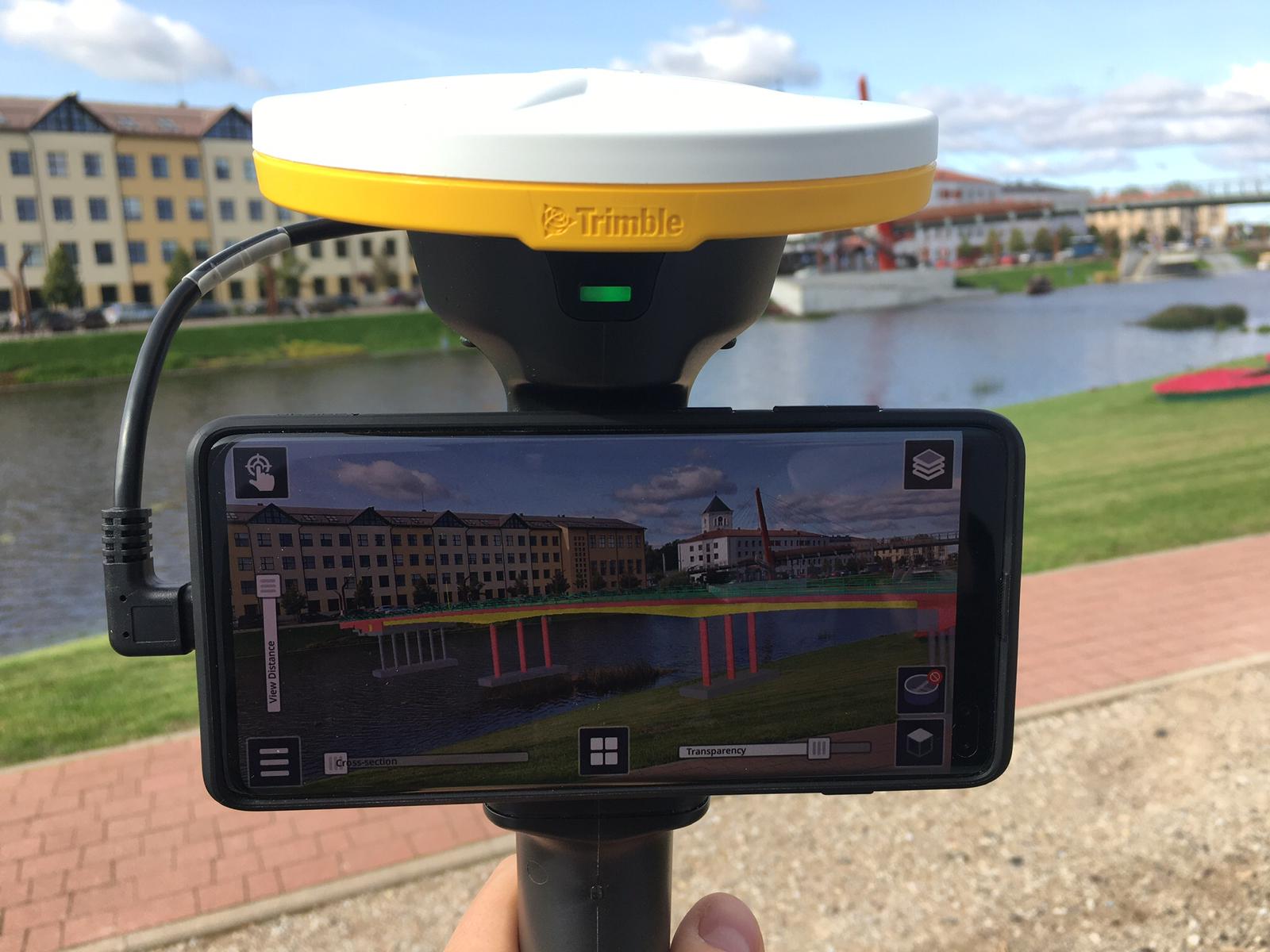

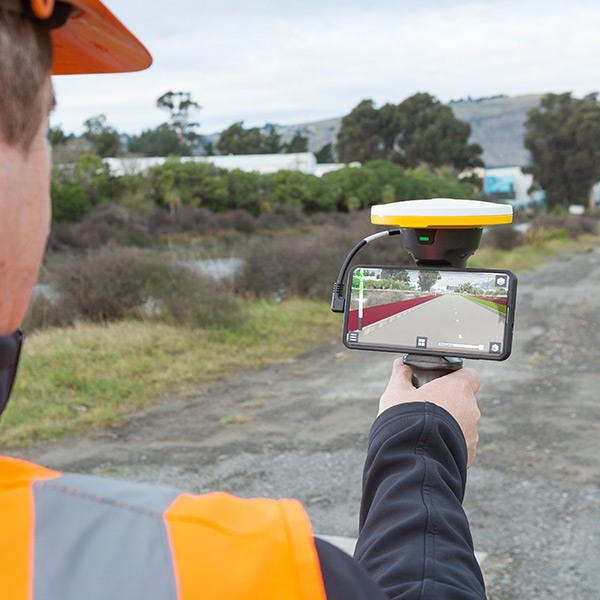

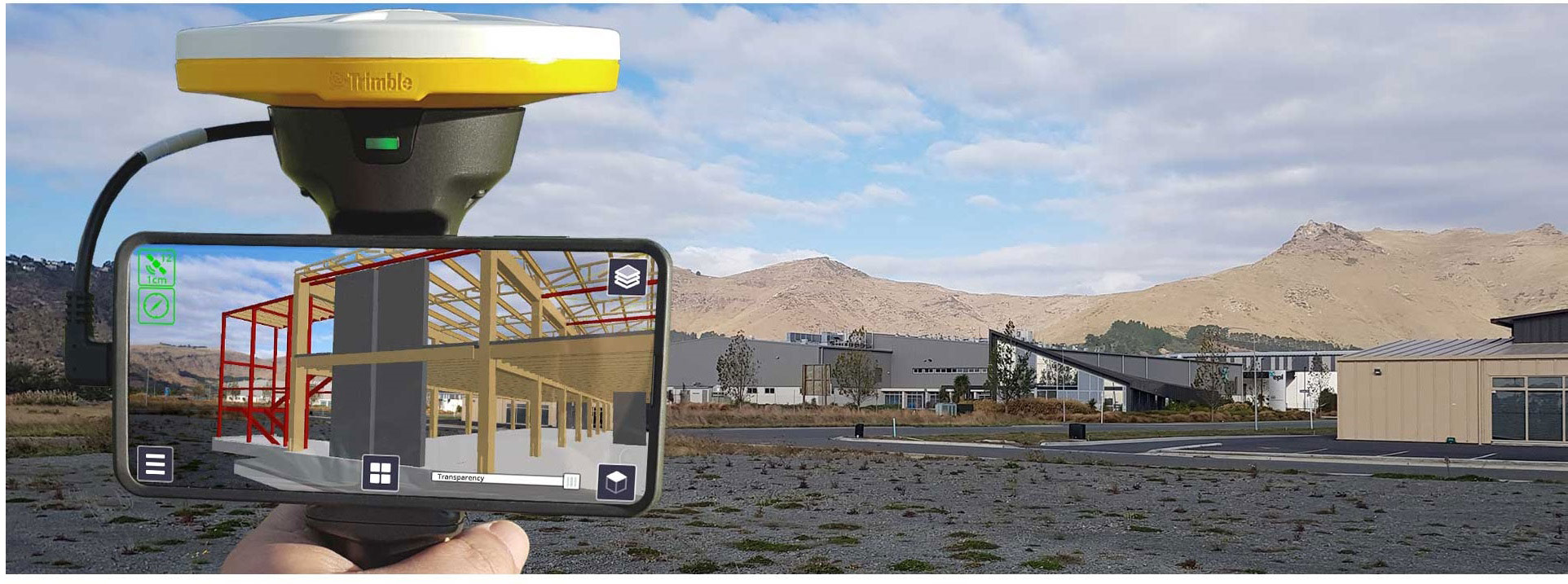

Trimble SiteVision Components:
- Field Equipment: Handle with rangefinder.
- Trimble Catalyst: GNSS antenna and software.
- SiteVision App: Augmented reality application.
- Smartphone (not included).
Trimble SiteVision Specifications:
| Feature | Details |
|---|---|
| GNSS Accuracy: | Horizontal: 1 cm + 1 ppm; Vertical: 2 cm + 1 ppm. |
| GNSS Systems Supported: | GPS, GLONASS, Galileo, QZSS, SBAS, L-Band. |
| Correction Formats: | RTCM 3.0, RTCM 3.1, RTCM 3.2. |
| Rangefinder Accuracy: | +/- 3 mm. |
| Rangefinder Distance: | 0.3 mm to 25 m on dark surfaces; up to 100 m on light surfaces. |
| Supported Data Formats: | Trimble, SketchUp, AutoCAD, and others. |
| Model Placement Methods: | 3D and 2D models can be placed in three ways. |
Applications:
- Cadastral Work: Precise property boundary visualization.
- Underground and Aboveground Utilities: Visualizing pipelines, cables, and communication networks.
- Construction Projects: Pre-construction visualization and planning.
- Workplace Safety: Identifying and managing potential risks.
- Natural Resources: Monitoring and managing environmental assets.
Trimble SiteVision Software Subscription:
To use Trimble SiteVision, the following subscriptions are required:
- Trimble Cloud Subscription: For project storage and sharing.
- Trimble Catalyst Subscription: For GNSS positioning services.
- SiteVision App Subscription.
