GIS Receivers

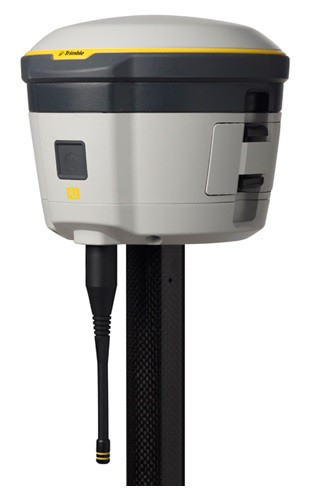

The Trimble R580 is a GNSS receiver with Tilt Sensor (IMU) and ProPoint™ technology that delivers high performance in challenging surveying conditions.

Trimble ProPoint™ is an RTK algorithm that provides high performance in challenging surveying conditions. Tests show 30% better performance than the R10, which is already recognized as a very good performer. ProPoint technology is a new signal filtering technology that processes any received satellite signal. The fast receiver processor is fully utilized with optimal signal filtering and advanced calculation algorithm.

The Trimble R580 is a receiver equipped with a Trimble Maxwell 7 GNSS chip with 336 channels.

Trimble R580 uses all GNSS systems GPS, Glonass, Galileo and Beidou and is also prepared for future signals (QZSS and IRNSS)

Trimble xFill™ allows you to maintain accuracy for 5-10 minutes even if sent baseline network corrections are interrupted.

Technical specification:

• Trimble ProPoint™ technology;
• Trimble 360 GNSS technology;
• 336-channel Maxwell GNSS chip;
• Open for Windows, iOS and Android;
• Work protection class IP68, submersible in water;
• Drops from 2m on concrete;
• Weight 1.08 kg;
• Integrated GSM/GPRS modem;
• Possibly as Base, Rover or Bje/Rover. Available with UHF radio;
• Operating temperature -20 C to +55 C;
• Compatible with Trimble controllers (TDC600, TSC5, TSC7 and T100) as well as S/SX tachymeters.

Datasheet with full technical specification available here
