Trimble rail surveying systems

Produkti » Railway Systems/GEDO » Trimble rail surveying systems

Trimble GEDO

code: 891
manufacturer: Trimble
possible to order

Ask the price

E-mail *
E-mail
Mobile phone
Captcha code * mobile phone
Captcha4+3=

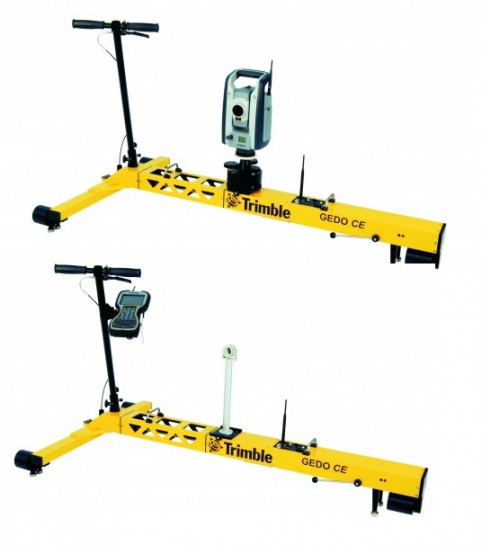

Trimble GEDO CE 2.0 is a high-performance railway measurement trolley designed for precise track surveying, clearance analysis, and maintenance planning. This advanced system is versatile, lightweight, and modular, making it an essential tool for professionals working in railway infrastructure development and upkeep.

Description:

Trimble GEDO CE 2.0 is a precise and robust rail-mounted measurement system. It integrates seamlessly with Trimble GNSS receivers, total stations, and data processing software to deliver accurate railway track geometry data. Its modular design allows for various configurations, depending on project requirements, from simple data collection to comprehensive track alignment and clearance analysis.

Specifications:

Feature Details
Compatibility Works with Trimble GNSS receivers and total stations (e.g., Trimble R10, R12i, S-series total stations).
Measurement Accuracy Sub-millimeter accuracy for track geometry.
Data Output Supports multiple formats, including LandXML and CSV.
Sensors Supports IMU, laser, and GNSS sensors.
Weight Lightweight design, under 30 kg for easy transportation.
Track Gauge Range Compatible with a variety of track gauges, configurable for standard and non-standard gauges.
Power Supply Battery-operated with extended runtime for field operations.
Operating Environment Temperature range: -20°C to +50°C; IP65-rated for dust and water resistance.

Applications:

  1. Track Surveying:
    • Accurately measures track geometry, including cant, alignment, and position, to ensure compliance with design standards.
  2. Clearance Analysis:
    • Evaluates track clearance to identify potential obstructions and maintain operational safety.
  3. Track Maintenance:
    • Supports tamping machine guidance by providing accurate data for track adjustments.
  4. As-Built Surveys:
    • Records and verifies track as-built data for documentation and compliance purposes.
  5. Track Reconstruction and Alignment:
    • Provides precise data for realigning tracks and reconstruction projects.

Functions:

  1. Integrated Measurement:

    • Combines GNSS and total station data for enhanced accuracy in track position and alignment.

  2. Modular Configuration:

    • Adaptable to specific project needs with optional modules for clearance scanning, GNSS integration, and georeferencing.

  3. Real-Time Data Collection:

    • Captures and processes track geometry data in real time, enabling immediate analysis and adjustments.

  4. Enhanced Clearance Analysis:

    • Works with laser scanning systems like Trimble GEDO GX50 to analyze clearances and generate 3D models of the track environment.

  5. Comprehensive Reporting:

    • Outputs detailed reports for maintenance planning, compliance verification, and quality assurance.

  6. Tamping Support:

    • Generates precise data for tamping machine operations, optimizing track alignment and maintenance workflows.
