Trimble rail specialised software

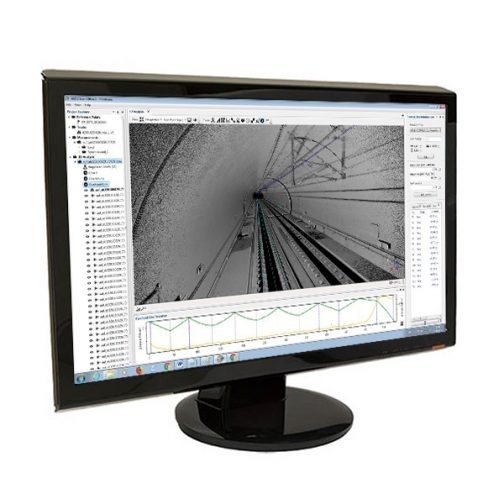

Trimble GEDO Office is a software suite that ensures a seamless data flow between field and office workflows, offering extensive features for railway-specific data processing and analysis.

Key Features:

• Data Processing and Analysis:
  GEDO Office allows the import, editing, and management of alignment data, as well as measurement analysis by comparing them to designed alignments.

• Quality Reports:
  The software generates quality reports on absolute and relative track positions, ensuring track quality control and compliance with standards.

• Tamping Data Preparation:
  GEDO Office prepares data for tamping machines, taking into account minimum and maximum cant and displacement values to ensure precise track alignment.

• Monitoring:
  The software enables the comparison of measurements from different time periods, facilitating track monitoring and the evaluation of tamping work efficiency.

Modules:

GEDO Office consists of several modules that can be tailored to project requirements:

Base Module:

• Input of alignment data and import of design data, supporting standard formats such as LandXML.

Rec Module:

• Processing measurements from GEDO Rec and GEDO Track systems, recalculating station setups, and merging measurements from different stations into a unified track model.

IMS Module:

• Processing measurements from the GEDO IMS system, including GNSS, total station, and GEDO Profiler measurements, ensuring precise track trajectory creation.

Tamp Module:

• Preparation of tamping machine data, interactive and graphical editing, ramp definition, and inclusion of platform-specific features.

Quality Module:

• Generation of quality reports on track position, chord reports with user-defined chord lengths, and acceptance documentation for fixed tracks.

Monitoring Module:

• Comparison of measurements from different time periods for track monitoring purposes and tamping work control.
