Lidar laser scanning sensors

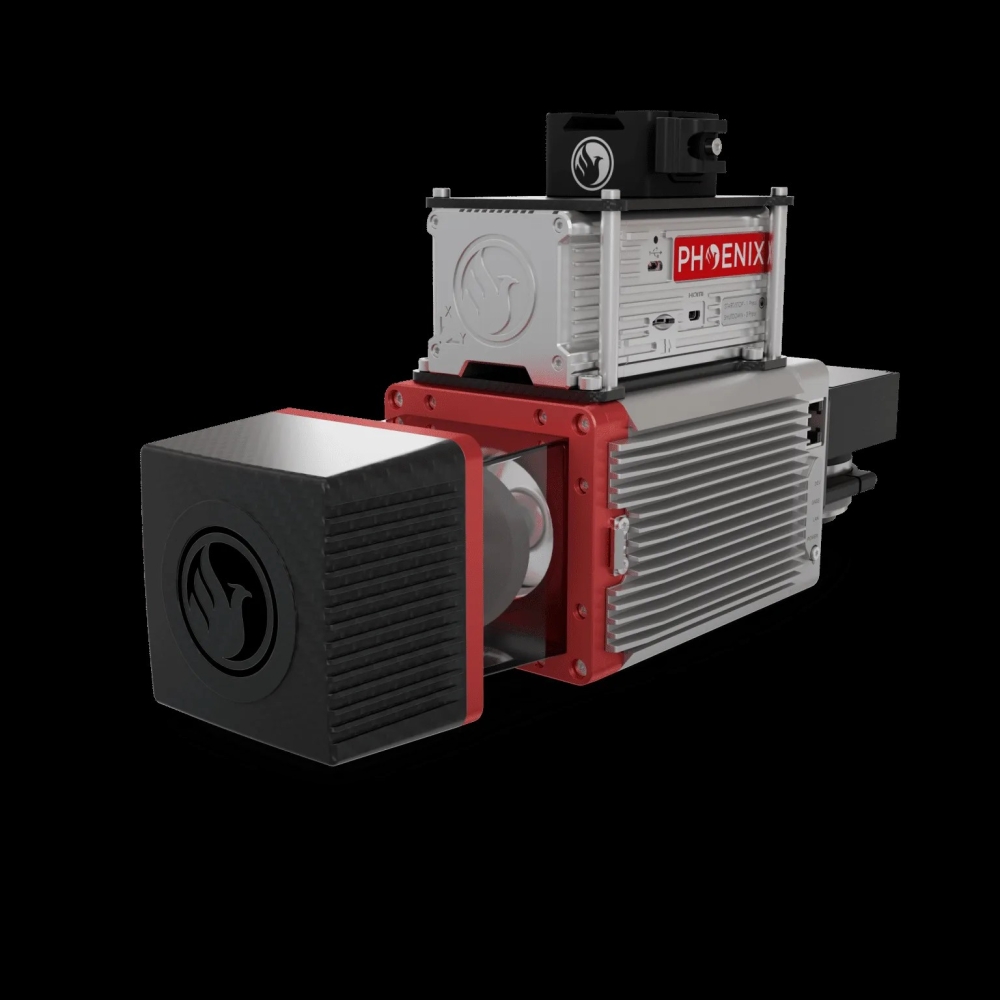

Phoenix LiDAR miniRANGER-3 LITE is a lightweight and compact LiDAR solution designed for capturing high-precision survey data across various applications. Below are the key specifications:

Key Parameters

• Absolute Accuracy: 2-3.5 cm RMSEz @ 75 m (according to PLS testing conditions)
• Intraswath Accuracy: 3 cm RMSDz @ 75 m
• Laser Range: Up to 290 m (at 60% reflectivity)
• Field of View:
  • 360° (at 100/200 kHz)
  • 180° (at 200 kHz)
  • 120° (at 300 kHz)
• Measurement Rate: Up to 300,000 points per second, with up to 5 returns
• Weight:
  • Without camera: 2.2 kg
  • With A6K-Lite camera: 2.5 kg
• Dimensions:
  • Without camera: 240 x 130 x 180 mm
  • With camera: 300 x 130 x 180 mm
• Operating Temperature: -10 °C to +40 °C
• Protection Rating: IP64

Navigation System

• Supported GNSS Systems: GPS, GLONASS, BeiDou, Galileo
• Position Accuracy: 1 cm + 1 ppm RMS horizontally
• IMU Stability: 1.0°/hr to 0.5°/hr (optional)

Laser Properties

• Wavelength: 905 nm (Eye Safety: Class 1)
• Minimum Measurement Range: 2 m
• Maximum Precision: 15 mm
• Power Consumption: 18 W

Key Features

• Versatile Mounting: Adaptable to various vehicles, UAV platforms (e.g., DJI M300, M600), and backpack systems.
• Photogrammetry Capability: A 61 MP photogrammetry camera option enables simultaneous LiDAR and high-resolution image capture.
• Smart Data Processing: Phoenix software provides a user-friendly experience and seamless workflow.

Applications

• Oil and Gas Surveying
• Utility Mapping
• Railroad Monitoring
• Agriculture and Forestry Monitoring
• Construction Site Surveying
• Quarry and Open-Pit Mining
• General Mapping
