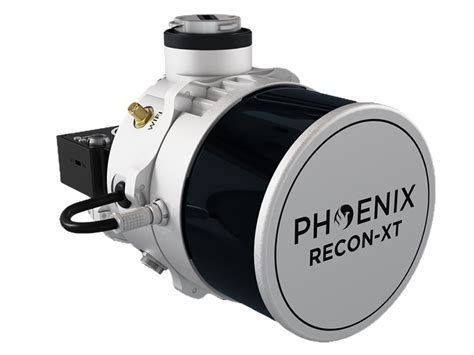

RECON-XT Phoenix LiDAR Systems
The RECON-XT is an entry-level LiDAR system developed by Phoenix LiDAR Systems, designed for use with DJI Matrice 350 and Freefly Systems Astro drones. This system is ideal for scanning smaller areas and for teams with limited budgets, offering flexible mounting options, including installation on drones, vehicles, or even backpacks.
Key Features:
-
Speed and Accuracy:
- Pulse Rate: 640,000 pulses per second, providing up to 1.28 million points per second in dual-echo mode.
- Precision: Highly accurate for various surveying applications.
-
Measurement Range:
- Maximum Operating Distance: Up to 120 meters.
-
Weight:
- Approximately 1.8 kg, making it suitable for multiple platforms.
-
Integrated Camera:
- Resolution: 24 MP.
- Field of View (FOV): 70°, enabling colorized point cloud generation.
Technical Parameters and Functions:
| Parameter | Value |
|---|---|
| Pulse Rate | 640,000 pulses per second |
| Point Rate (Dual-Echo Mode) | Up to 1.28 million points/sec |
| Maximum Range | 120 meters |
| Weight | 1.8 kg |
| Camera Resolution | 24 MP |
| Camera Field of View | 70° |
| Mounting Options | Drone, vehicle, backpack |
Applications:
- General Mapping
- Construction Site Surveying
- Utility Mapping
- Agricultural and Forestry Monitoring
- Stockpile Volume Calculation
- Open-Pit Mining Operations
The RECON-XT combines lightweight, versatile LiDAR technology with an integrated high-resolution camera to deliver accurate and cost-effective 3D data acquisition for a range of applications.
