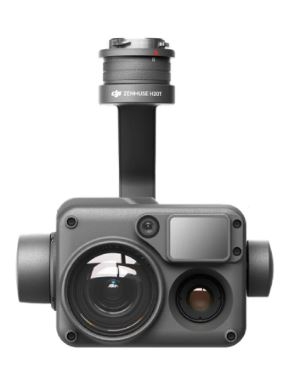

DJI Zenmuse H20T is a multisensor hybrid camera designed for professional use with the DJI Matrice 300 RTK drone platform. It combines four sensors into one integrated solution: a zoom camera, a wide-angle camera, a thermal camera, and a laser rangefinder, offering extensive capabilities for various commercial applications.

Key Features and Specifications:

Zoom Camera:

• 20 MP 1/1.7" CMOS sensor
• 23× hybrid optical zoom
• Maximum zoom: 200×
• Aperture: f/2.8-f/11 (normal mode), f/1.6-f/11 (night mode)
• Focus range: 1 m to infinity (wide-angle mode), 8 m to infinity (telephoto mode)

Wide-Angle Camera:

• 12 MP 1/2.3" CMOS sensor
• 82.9° field of view
• Focal length: 4.5 mm (equivalent to 24 mm)
• Aperture: f/2.8
• Focus range: 1 m to infinity

Thermal Camera:

• 640×512 resolution at 30 Hz
• Digital zoom: 1×, 2×, 4×, 8×
• Temperature measurement methods: spot measurement, area measurement
• Temperature range: -40°C to 150°C (high sensitivity), -40°C to 550°C (low sensitivity)

Laser Rangefinder:

• Measurement range: 3 m to 1200 m
• Accuracy: ± (0.2 m + distance × 0.15%)

Additional Features:

• IP44 protection rating
• Operating temperature range: -20°C to 50°C
• Active image stabilization and Electronic Image Stabilization (EIS)
• Night mode

Applications:

Zenmuse H20T is suitable for various commercial and industrial applications, including:

• Public Safety: Firefighting, search and rescue operations, traffic surveillance.
• Energy Sector: Inspection of power lines, wind turbines, and solar panels.
• Oil and Gas Industry: Inspection of pipelines and equipment.
• Water Management and Forestry: Monitoring of dams, rivers, and forests.
