Kameras/sensori

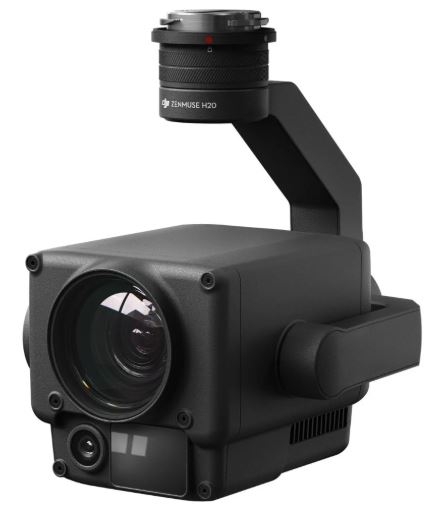

DJI Zenmuse H20 is a multisensor hybrid camera designed for professional use with the DJI Matrice 300 RTK drone platform. It combines multiple sensors into one integrated solution, offering extensive capabilities for various commercial applications.

Key Features and Specifications:

Zoom Camera:

• 20 MP 1/1.7" CMOS sensor
• 23× hybrid optical zoom (DFOV: 4°, equivalent focal length: 556.2 mm)
• Maximum zoom: 200× (DFOV: 0.5°, equivalent focal length: 4800 mm)
• Aperture: f/2.8-f/11 (normal mode), f/1.6-f/11 (night mode)
• Focus range: 1 m to infinity (wide-angle mode), 8 m to infinity (telephoto mode)

Wide-Angle Camera:

• 12 MP 1/2.3" CMOS sensor
• 82.9° field of view
• Focal length: 4.5 mm (equivalent to 24 mm)
• Aperture: f/2.8
• Focus range: 1 m to infinity

Laser Rangefinder:

• Measurement range: 3 m to 1200 m
• Accuracy: ± (0.2 m + distance × 0.15%)

Additional Features:

• IP44 protection rating
• Operating temperature range: -20°C to 50°C
• Active image stabilization and Electronic Image Stabilization (EIS)
• Night mode

Applications:

Zenmuse H20 is suitable for a variety of commercial and industrial applications, including:

• Public Safety: Firefighting, search and rescue operations, traffic surveillance.
• Energy Sector: Inspection of power lines, wind turbines, and solar panels.
• Oil and Gas Industry: Inspection of pipelines and equipment.
• Water Management and Forestry: Monitoring of dams, rivers, and forests.
