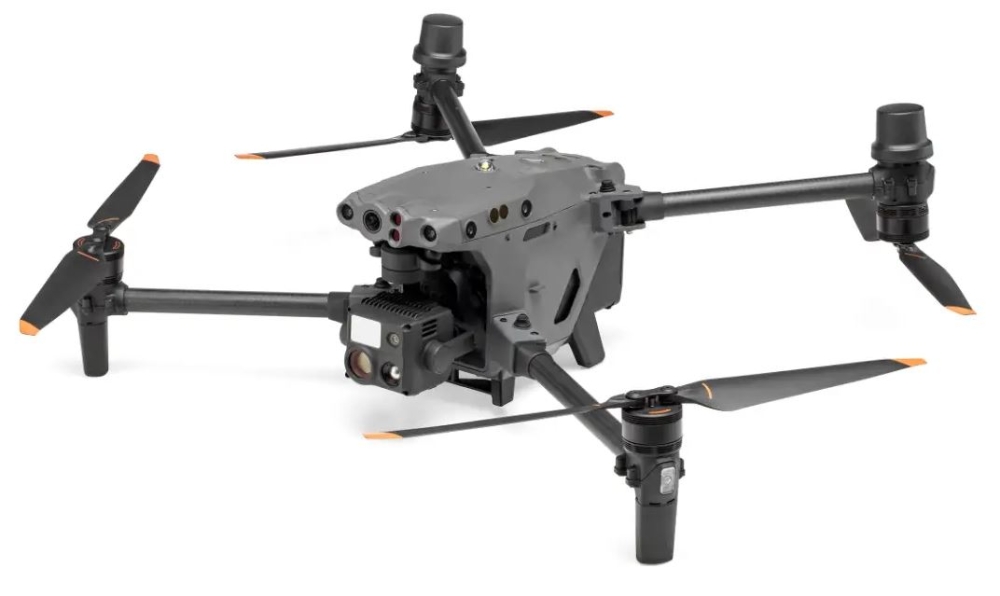

DJI Matrice 30T (M30T) is an advanced commercial drone that combines powerful performance with portability, making it suitable for various professional applications. It is equipped with an integrated wide-angle camera, zoom camera, thermal camera, and laser rangefinder, providing versatile data collection solutions.

video

Key Specifications:

• Dimensions and Weight:

  • Deployed (without propellers): 470×585×215 mm
  • Folded: 365×215×195 mm
  • Weight (with two batteries): Approximately 3770 g

• Flight Performance:

  • Maximum flight time: Up to 41 minutes
  • Maximum speed: 23 m/s
  • Wind resistance: Up to 12 m/s
  • Maximum flight altitude above sea level: 5000 m (with standard propellers); 7000 m (with high-altitude propellers)

• Operating Conditions:

  • Operating temperature range: -20°C to 50°C
  • Protection class: IP55, providing protection against dust and water splashes

• Sensors and Cameras:

  • Wide-angle camera: 12 MP 1/2'' CMOS sensor, 84° field of view, video resolution up to 4K/30fps
  • Zoom camera: 48 MP 1/2'' CMOS sensor, 5x-16x optical zoom, maximum hybrid zoom up to 200x, photo resolution up to 8K, video up to 4K/30fps
  • Thermal camera: 640×512 resolution, 30fps, temperature measurement accuracy of ±2°C or ±2%
  • Laser rangefinder: Range from 3 m to 1200 m, accuracy ±(0.2 m + D×0.15%)

• Safety and Reliability:

  • Dual vision and ToF sensors on all six sides, ensuring obstacle avoidance
  • Built-in ADS-B receiver that alerts of nearby manned aircraft
  • Redundancy and backup systems for safe flights even in unforeseen situations

• Transmission:

  • Four built-in antennas with OcuSync 3 Enterprise technology, providing triple-channel 1080p video transmission and stable connection even in challenging environments

Features:

• Environmental Adaptability: With an IP55 protection class and an operating temperature range from -20°C to 50°C, the M30T is suitable for operation in various weather conditions.
• Integrated Sensors: Wide-angle and zoom cameras, a thermal camera, and a laser rangefinder provide versatile data collection solutions.
• Enhanced Safety: Multi-directional obstacle avoidance sensors and an ADS-B receiver increase flight safety.
• Portable Design: The compact and foldable design makes it easy to transport and deploy quickly.

Applications:

The DJI Matrice 30T is suitable for various industries, including:

• Infrastructure Inspections: Inspection of bridges, roads, railways, and other structures.
• Energy Sector: Monitoring of power lines, wind turbines, and solar farms.
• Public Safety: Rescue operations, firefighting, and law enforcement tasks.
• Agriculture: Monitoring and analyzing agricultural fields.
• Mapping and Surveying: High-precision data collection for mapping projects.
