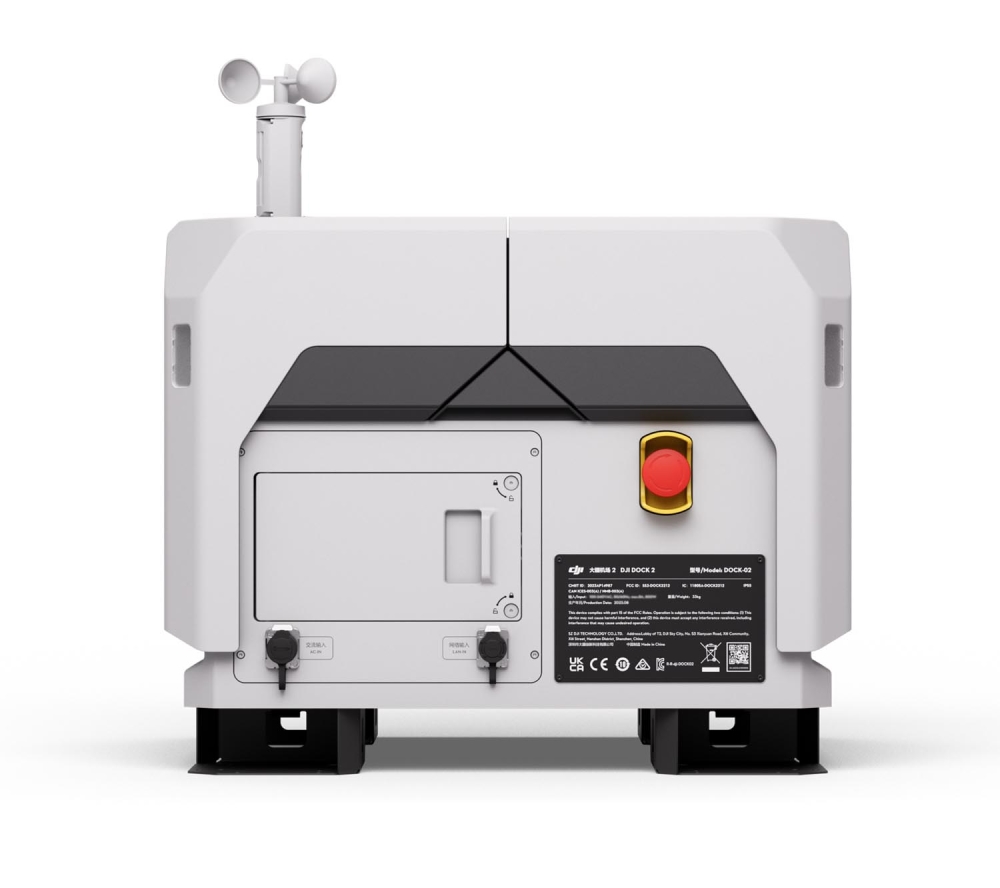

DJI Dock 2 is an advanced automated drone station that ensures efficient and reliable deployment and management of DJI Matrice 3D and Matrice 3TD drones. Compared to its predecessor, it is more compact and lighter, making it easier to transport and install.

Key Specifications:

• Dimensions and Weight:

  • Open: 1228×583×412 mm
  • Closed: 570×583×465 mm
  • Weight: 34 kg (without drone)

• Power Requirements:

  • Input Voltage: 100-240 V AC, 50/60 Hz
  • Maximum Input Power: 1000 W

• Operating Conditions:

  • Operating Temperature: -25°C to 45°C
  • Protection Class: IP55
  • Maximum Wind Speed During Landing: 8 m/s
  • Maximum Operating Altitude: 4000 m

• Charging Performance:

  • Charging Time: Approximately 32 minutes (from 20% to 90% at 25°C)

• Additional Features:

  • Integrated weather monitoring system (wind speed, precipitation, temperature)
  • Internal and external security cameras with 1080p resolution and a 151° field of view
  • Built-in backup battery providing over 5 hours of operation during power outages
  • Support for third-party platforms via DJI Cloud API

Features:

• Compact and Lightweight Design:
  DJI Dock 2 is 75% smaller and 68% lighter than its predecessor, allowing for easy transportation and installation by two people.

• Quick Deployment:
  The dock can perform a full propeller check and take off within approximately 45 seconds, enabling rapid operation start.

• Fast Charging:
  The drone charges from 20% to 90% in just 32 minutes, ensuring efficient mission continuity.

• Integrated Environmental Monitoring System:
  Monitors weather conditions in real-time, ensuring safe operations.

• Cloud-Based Management:
  Enables task planning, real-time monitoring, and data management via DJI FlightHub 2.

Applications:

DJI Dock 2 is suitable for various industries requiring automated drone operations:

• Mapping and Surveying:
  High-precision 3D modeling and cartographic data collection.

• Infrastructure Inspections:
  Regular inspections of bridges, roads, railways, and other structures.

• Public Safety:
  Patrolling and security surveillance.

• Agriculture:
  Monitoring and analyzing agricultural fields.
