Laser Scanners

With Trimble X9, Trimble provides the ability to:

• View scanned data on-site (2D/3D from the station point, all points).
• Merge (register) new scan stations with previous ones (automatically by default).
• View shaded data in real (RGB) colors in the field.
• Refine data in the field and generate a report (Refinement).
• Immediately export data in various formats (industry standards, without the need to return to the office).
• Add annotations (key points, targets, points of interest, floors, stairs, wells), attach photos and descriptions.
• Take field measurements – precise data (distances, coordinates of any scanned point).
• Manually merge scan stations using common points.
• Utilize data during new station scans.
• Automatically capture panoramas (standard and HDR).
• Georeference measurements before returning to the office. Previously, georeferencing scanned data was only possible using Trimble RealWorks or Trimble Business Center office software, but now it can be done in the field.

Key Features:

• High-Speed Scanning: Scanning speed up to 1,000,000 points per second, enabling rapid acquisition of high-resolution data.
• Extended Operating Range: Effective data capture up to 150 m, offering a broader range of applications.
• High Accuracy: Range accuracy of 2 mm and angular accuracy of less than 16", ensuring detailed and reliable measurements.
• Integrated HDR Imaging: Three calibrated 10 MP cameras deliver high-quality images with automatic exposure and white balance correction.
• Automatic Self-Leveling and Calibration: Ensures quick setup and consistent data quality without manual intervention.

Technical Specifications:

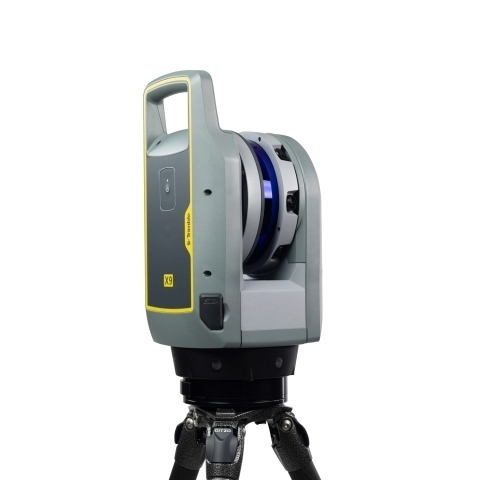

Trimble X9 is a reliable and versatile 3D laser scanning system suitable for a variety of applications.
